WO# 5300

CHASSIS

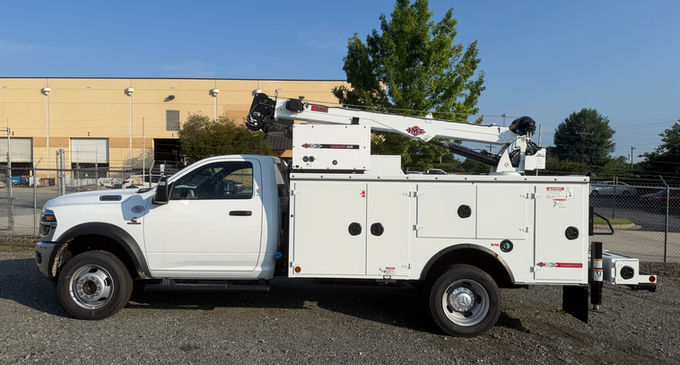

2026 RAM 5500 4x4 (84"CA, 19,500 GVWR, 6.7L Diesel Engine, 8-Speed Automatic Transmission w/ PTO Provision, Steel Wheels, 40/20/40 Split Bench Seat, Chrome Appearance Group, Cold Weather Group, Trailer Brake Control, Black Tubular Side Steps, ParkView Rear Back-Up Camera, UConnect 5 w/ 8.4" Display)

BODY
IMT DOMINATOR I - 11' RIGHT FRONT RAISED HEAVY DUTY CRANE BODY - 51728300 (Galvannealed Steel Body w/ Standard Right Rear Crane Mount, 21" Workbench Bumper w/ Through Compartment, 1/4" Plate Work Surface & Recess for Pintle Hitch & Receiver Tube, 44" High Compartments w/ Right Front 1st & 2nd Compartments Raised to 60", 3-Point Access Package, Body Installation Kit, Fully Integrated & Sealed Electrical System Incorporating an Automotive Style Harness System w/ Power Function & Distribution Box, Body Exterior Primed, Inside of Compartments Painted with IMT Compartment Coat & Understructure Undercoated, Designed to Accept Up To & Including 7500 lb Maximum Capacity Crane, 84" CA, 15,000 lb - 19,500 lb GVW Chassis)
Body Installation Kit
51718801 10" Fold Down Tailgate w/ Single Hand Latch
IMT Installed Electrical Harness on Dominator Body
Set of Rear Mud Flaps
Back Up Alarm

1st LEFT VERTICAL COMPARTMENT
Fixed Shelf Above Roll-Out Drawers
(8) Heavy Duty Roll-Out Drawers w/ Bearing Slides & Removable Dividers (1-7", 2-5", 5-3")

2nd LEFT VERTICAL COMPARTMENT
(2) 51723989 3"H Divided Adj. Shelf 19" x 17.5" w/ (6) Dividers

LEFT HORIZONTAL COMPARTMENT
51723717 3"H Divided Adj. Shelf 19" x 49.5" w/ (10) Dividers (11' Body)

LEFT REAR VERTICAL COMPARTMENT
(2) 51723719 3"H Divided Adj. Shelf 19" x 25.5" w/ (5) Dividers

1st RIGHT VERTICAL COMPARTMENT
51719752 (2) Oxy/Acet Tank Bracket w/ Hook (Front Wall Mounted)
51720127 Compartment Divider Kit - 60"H
(3) 51723731 3"H Divided Shelf 19" x 17.5" w/ (4) Dividers (Requires Compartment Divider)

2nd RIGHT VERTICAL COMPARTMENT
(3) 51723989 3"H Divided Adj. Shelf 19" x 17.5" w/ (6) Dividers

RIGHT HORIZONTAL COMPARTMENT
51723741 3"H Divided Adj. Shelf 19" x 49.5" w/ (10) Dividers (11' Body)

RIGHT REAR VERTICAL COMPARTMENT
Integrated Crane Reinforcement, Control Panel, & Fuse Box

MASTER LOCKING SYSTEM
51735012 Master Lock System for 11' RF or LF Raised Body

ADDITIONAL ITEMS
ETO Mounting Rails, Street Side Full Length (Drawing # 32761)

LIGHTING
51726715 LED Light Kit - (9) Lights (1 per Veritcal & 2 per Horizontal) 11' RF or LF Raised Body (Crane Box Has Integral Compartment Light)
51726761 LED Work Light - (2) Lights w/ Mounting Bracket (Rear Body Mount)

PAINT & FINISH
Body IMT Painted: Class A Colors (White & Tan)
Spray-In Bed Liner (Cargo Area, Tailgate, & Bumper) - 11'

HYDRAULIC INSTALLATION KIT
Crane & Compressor Installation Kit-Hyd, DOM1 w/o Welder Deck

CRANE
IMT 7500-30 Series Telescopic Mechanic Field Service Crane (7,500 lb Maximum Crane Rating, 400 Degree Rotation, Two Hydraulic Extensions to 30', Double-Acting Cyclinders w/ Integral Holding and/or Counterbalance Valves, Proportional Control Valve, Radio Remote Control w/ Fully Proportional Control, Radio Elimination Cable, Boom Mounted 60 ft/min Planetary Winch, Return Filters, Crane Hook, Snatch Block, Anti-Two Block Device, Hydraulic Overload Shutdown System, Decals and Mounting Kit, Crane Weight: 2,400 lb)
51724116 Boom Tip Light Kit (2 LED Lights, Installed) - 6,000 to 14,000
31728470 Rear Power Out / Power Down Stabilizers
IMT Boom Support
IMT 30009851 Unit Leveling

AIR COMPRESSOR
CAS40PAW IMT Hydraulic Driven Piston Air Compressor (10gpm Hydraulic Motor, Open Center Control Valve, Integrated Hydraulic Cooler, 40 CFM @ 100 PSI, 35"L x 21"W x 22"H, Weight 400 lbs.)
51728145 Air Tank Kit - RAM 9' & 11' Body
51725644 Hose Reel Kit - 1/2" x 50' w/ Hose Roller Guide
51727824 1/2" Filer / Regulator / Oiler

HYDRAULIC SYSTEM
91723963 21 Gal Hydraulic Oil Reservoir w/ In-Tank Top Mounted Return Filter (Mounted in Cargo Area on Back of Bulkhead)
PTO w/ Hot Shift (Required for Auto Transmission)
51728519 Selector Valve Kit
Single Section Hyd Pump

SAFETY
IMT 92091010 ICC Safety Kit & Fire Extinguisher (Required for IMT Installed Units)
